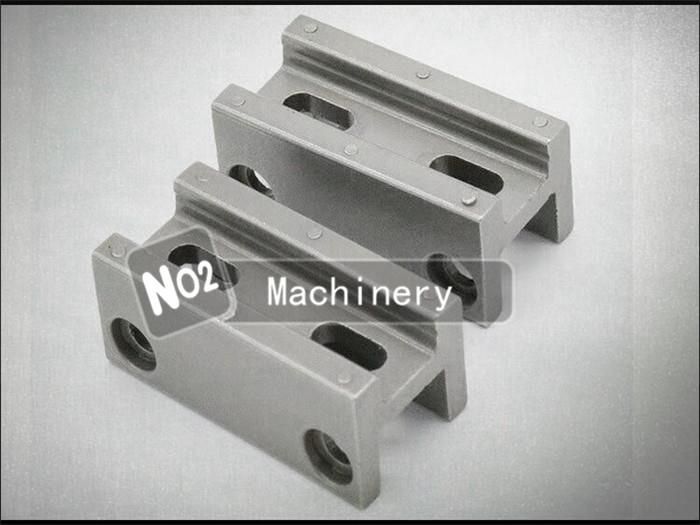

6MM Pneumatic Guide

6MM Pneumatic Guide

Material: SUS420
Density: ≥ 7.8g/cm3
Hardness: ≥ 150 HV10
Tensile strength: ≥500mpa
Yield strength: ≥180mpa
Elongation: ≥50%

Feature:The simplest MIM parts are produced by a cavity formed by two half-dies in a plane and sealed.All structural features of the design must be formed parts that can be removed from the cavity and solidified from the core by the ejector.When the complexity of MIM parts increases, sliders, cores and other tools commonly used in plastic injection moulding can be added.


At every stage of design, these benefits and costs must be carefully weighed against each other.In the design of MIM parts, the following key points must be taken into account in order to fully obtain all the benefits of this process: uniform wall thickness, thickness transition section, core removal hole, demoulding slope, reinforcing ribs and spokes, chamfering and chamfering, threads, holes and grooves, undercutting, casting system, parting line, decorative features, sintering support, etc.


MIM technology can make various kinds of metal parts. If your part is made of stainless steel, steel, iron and the shape is complex, MIM is the best choice. If you want to make metal components by MIM, you need to send us the parts drawings, including PDF and 3D files in which, we can see the shape, sizes, tolerance and other requirements such as surface treatment, hardness(HRC). Also, we need to know the quantity for the part. Because to make MIM items, the mold is important. To make a mold is around 3000--5500USD that based on the shape, so if the customer have several parts to produce, we suggest to put them in one mold to save cost.
